KCS077VG2EA-G43 Kyocera 7.7INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

Name: KCS077VG2EAG43 Kyocera 77INCH LCM 640480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY
Brand: Kyocera
Price: 1 USD

Quality KCS077VG2EA-G43 Kyocera 7.7INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY wholesale

Brand Name : Kyocera

Model Number : KCS077VG2EA-G43

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERNUNION/ESCROW

Supply Ability : 30PCS

Delivery Time : 1-2day

Packaging Details : STANDARD PACKING

MODEL NUMBER : KCS077VG2EA-G43

BRAND : Kyocera

SIZE : 7.7INCH

RESOLUTION : 640×480RGB

BRIGHTNESS : 200 cd/m² (Typ.)

Signal Interface : Parallel Data (8-bit) , 29 pins Connector

Lamp Type : 2 pcs CCFL , 40K hours , Optional

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C

Contact Now

Kyocera KCS077VG2EA-G43 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		KCS077VG2EA-G43	CSTN-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		0 ~ 50 °C	-20 ~ 60 °C

Kyocera KCS077VG2EA-G43 Mechanical Features

Screen Size :	7.7"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.082×0.246 mm	0.246×0.246 mm [103PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	157.42×118.06 mm	160.42×121.06 mm	199×147 mm	10.0±0.5 mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3	Landscape type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	330g	-	Glare (Haze 0%)

Kyocera KCS077VG2EA-G43 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	200 cd/m² (Typ.)	STN, Normally Black, Transmissive	25:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	-	-	160/140 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	5983K	Color	X:0.320; Y:0.360
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	40%	55%	42%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	42%	30%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Kyocera KCS077VG2EA-G43 Electronics Features

Refresh Rate :	75Hz
Reverse Scan :	No
Driving Method :	Duty: 1/240

ocera KCS077VG2EA-G43 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	CCFL	Edge light type (Top and Bottom)	40K(Typ.)	2 pcs	Straight	-
CCFL Electrical :	Input Voltage		Input Current			Power Consumption
	400V (Typ.)		2.0/5.0/6.0mA (Min./Typ./Max.)
	Operating Frequency		Startup Voltage
	40/100KHz (Min./Max.)		655/980V (Max.)(Ta=+25/0℃)
Interface Features :	CCFL Driver State			Physical Type		Interface Position
Interface Features :	Optional			Connector		-
Interface Detail	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail	HONDA	QZ-19-3F01	2 pcs	3 pins		BLL-3PINS-LNH

Kyocera KCS077VG2EA-G43 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	5.0V (Typ.)		3.2mA (Typ.)			316/493mW (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	Parallel Data (8-bit)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	molex	53261-1571	1 pcs	15 pins	1.25 mm
	molex	53261-1471	1 pcs	14 pins	1.25 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

KCS077VG2EA-G43 Kyocera 7.7INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY

Product Tags:

CCFL CSTN LCD Panel

VGA Lcd Video Panel

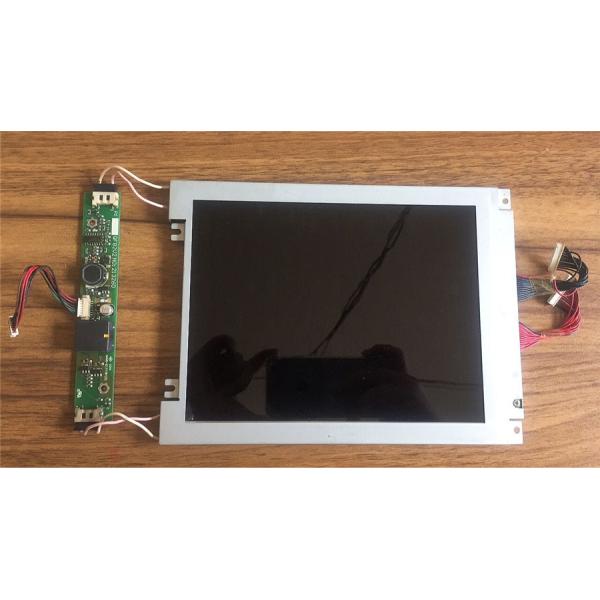

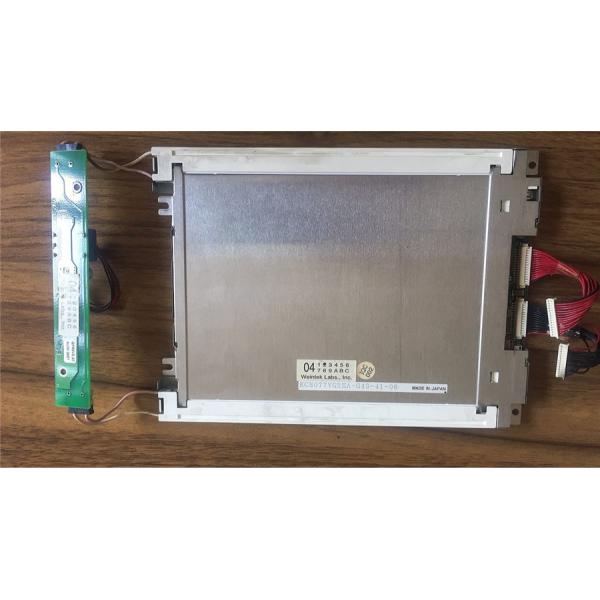

KCS077VG2EA-G43 Kyocera 7.7INCH LCM 640×480RGB 200NITS CCFL INDUSTRIAL LCD DISPLAY Images
